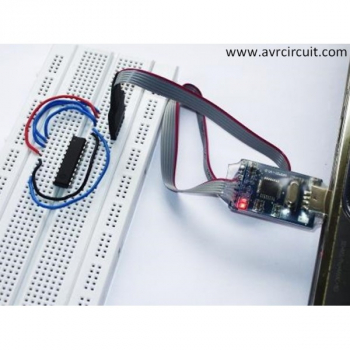

  • MRP01 - AVR USB Programmer with Breadboard

MRP01 - AVR USB Programmer

$13.50
Tax excluded Shipped within 1 week
3 Items

Specific References

Qty
In Stock

MRP01 used for programming the ATMEL AVR ATmega, ATtiny and AT90 family with ATMEL Studio, Avrdude, Arduino or other IDE software.



MRP01 - AVR USB Programmer



This package includes:

  • 1 x MRP01 - AVR USB Programmer
  • 1 x 4-pin header



Features & Specification:

  • Cost-effective, small size , high performance and user friendly device
  • Used for programming the popular Atmel AVR series, includes ATtiny, ATmega and AT90 family
  • Read and write operation for Flash and EEPROM
  • No external power supply is required
  • Compatible with ATMEL Studio (or AVR Studio) version 4.19 and above, Avrdude and Arduino
  • Over-current protection
  • Allow to update programming application firmware for future device support
  • Allow to upload hex file into it for different purposes or applications
  • Provided two types of ISP connection socket (single row and double rows)
  • Excellent flexibility to be used on breadboard
  • Supported operating systems(32bit/64bit): Windows XP ,Windows Vista, Windows 7, Windows 8, Linux (32bit) and Mac OS X (32bit)
  • Excellent flexibility that allows using in both PC desktop and laptop
  • Supported for 5V VCC operation voltage (supplied by programmer)
  • Supported by LUFA library



Download:



Support Devices:(Please check with us for not listed or new AVR chip)

  • 8 Pin:ATTINY13, ATTINY13A, ATTINY13V, ATTINY25, ATTINY25V, ATTINY45, ATTINY45V, ATTINY85, ATTINY85V
  • 14 Pin:ATTINY24, ATTINY24A, ATTINY24V, ATTINY44, ATTINY44A, ATTINY44V, ATTINY84, ATTINY84A, ATTINY84V
  • 20 Pin:ATTINY26, ATTINY26L, ATTINY261, ATTINY261A, ATTINY261V, ATTINY461, ATTINY461A, ATTINY461V, ATTINY861, ATTINY861A, ATTINY861V, ATTINY2313, ATTINY2313A, ATTINY2313V, ATTINY4313
  • 28 Pin:ATMEGA168, ATMEGA168A, ATMEGA168P, ATMEGA168PA, ATMEGA168PV, ATMEGA168V, ATMEGA328, ATMEGA328P, ATMEGA48, ATMEGA48A, ATMEGA48P, ATMEGA48PA, ATMEGA48PV, ATMEGA48V, ATMEGA88, ATMEGA88A, ATMEGA88P, ATMEGA88PA, ATMEGA88PV, ATMEGA88V, ATMEGA8, ATMEGA8A, ATMEGA8L, ATTINY48, ATTINY88
  • 40 Pin:ATMEGA1284, ATMEGA1284P, ATMEGA16, ATMEGA16A, ATMEGA16L, ATMEGA162, ATMEGA162V, ATMEGA164A, ATMEGA164P, ATMEGA164PA, ATMEGA164PV, ATMEGA32, ATMEGA32A, ATMEGA32L, ATMEGA324A, ATMEGA324P, ATMEGA324PA, ATMEGA324PV, ATMEGA644, ATMEGA644A, ATMEGA644P, ATMEGA644PA, ATMEGA644PV, ATMEGA644V, ATMEGA8515, ATMEGA8515L, ATMEGA8535, ATMEGA8535L
  • AT90 Series:AT90CAN128, AT90CAN32, AT90CAN64,AT90PWM1, AT90PWM216, AT90PWM2B, AT90PWM316, AT90PWM3B, AT90PWM81, AT90PWM161, AT90USB1286, AT90USB1287, AT90USB162, AT90USB646, AT90USB647, AT90USB82



Tutorial:

  • How to use MRP01 with Arduino IDE in Mac OS X: Link
  • How to use MRP01 with Arduino IDE in Ubuntu Linux: Link



Sample Application:

  • LED Blinking: Link



  • MRP01 IO Control (Android): Link
