iM01A - Servo Motor (13Kg/cm, Metal Gear, Analog)
  • iM01A - Servo Motor (13Kg/cm, Metal Gear, Analog)
  • iM01A - Servo Motor Complete Set
  • iM01A - Servo Motor with Metal Gear Box
  • iM01A - Servo Motor with Ball Bearing

iM01A - Servo Motor (13Kg.cm, Metal Gear, Analog)

$22.00
Tax excluded

Volume discounts

Quantity Discount You Save
5 10% Up to $11.00
Qty
There are not enough products in stock

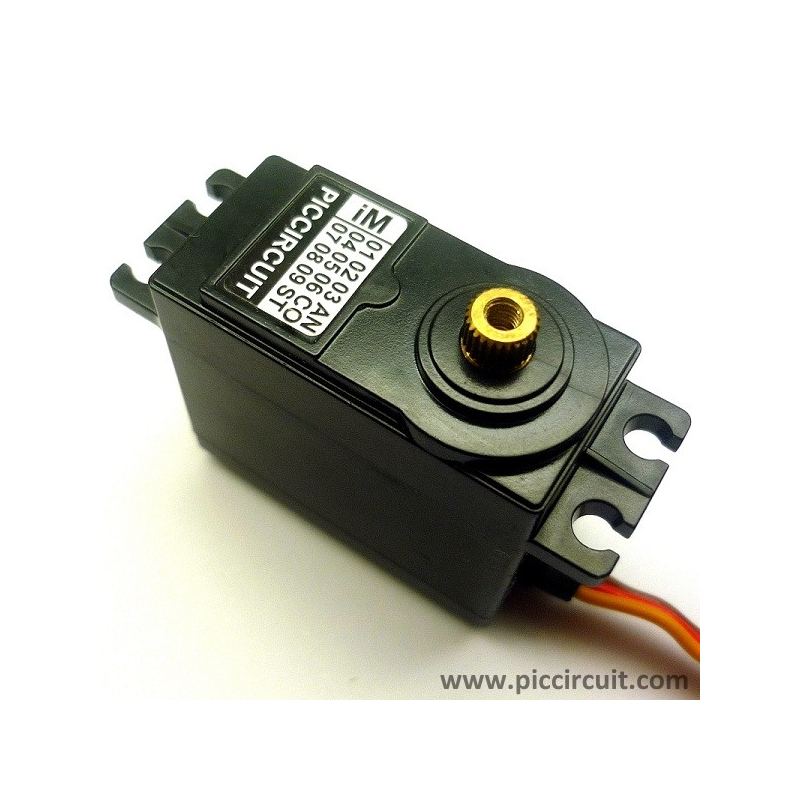

The iM01A is a servo motor with 13Kg.cm torque, metal gear box and analog angle control.


The iM01A is a high quality angle control servo motor. This servo motor operates from 0-180 degrees of movement range.



Features:

  • Operating voltage: 4.8V to 6.0V
  • Control signal: neutral angle at 1.5 mSec pulse width
  • Stall torque: 13Kg.cm
  • Angle speed: 0.18 sec/60°
  • Ball bearing
  • Gear box: Metal
Applications:
  • Robotics
  • Motion control
  • Radio controlled models (cars, planes..)
Dimension:
Servo Dimension
  • Dimension: A(4.0cm), B(5.4cm), C(2.0cm), D(1.0cm), E(4.85cm), F(4.3cm)
  • Wire length: 30cm
  • Wire connection: Brown (GND), Red (Power: 4.8V-6.0V), Orange (Control Signal)
Operation:
 Servo Operation
  • Servo angle is controlled by a signal pulse width on every 20 ms.
  • Following is the iM01A servo timing:
Pulse(ms) Angle(degree/CCW)
0.7 0 (min)
1.1 45
1.5 90
1.9 135
2.3  180 (max)
Remarks:
Overvoltage or overload output may damage the motor. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

Photos & Video (torque testing):

    • Torque = 4.2kg * 3.1cm = 13kg.cm (13kg/cm)
Load distance
