Tutorial 06 - Servo Motor Demo (Free)

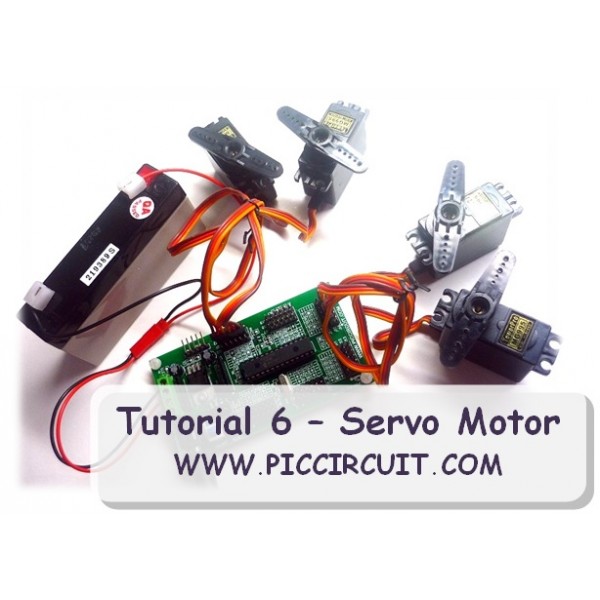

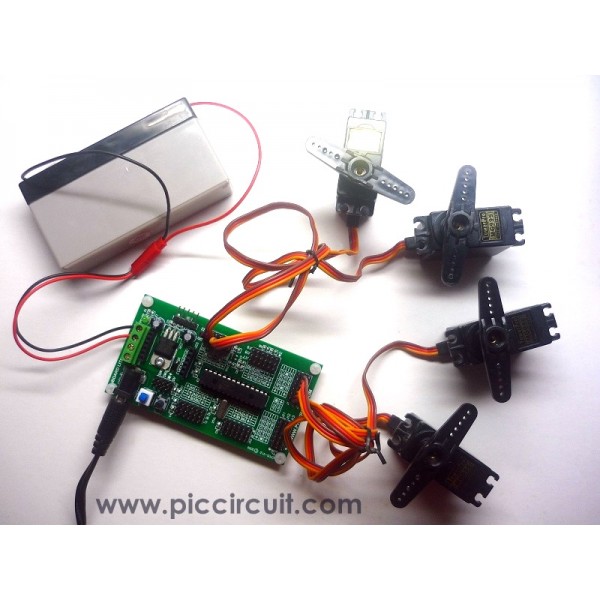

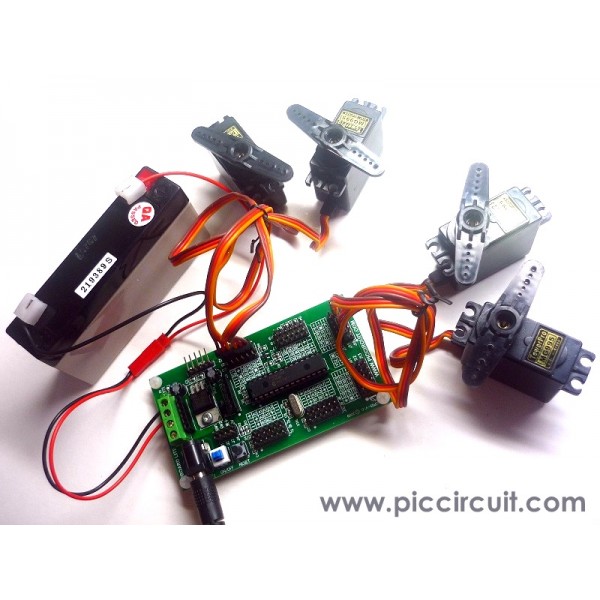

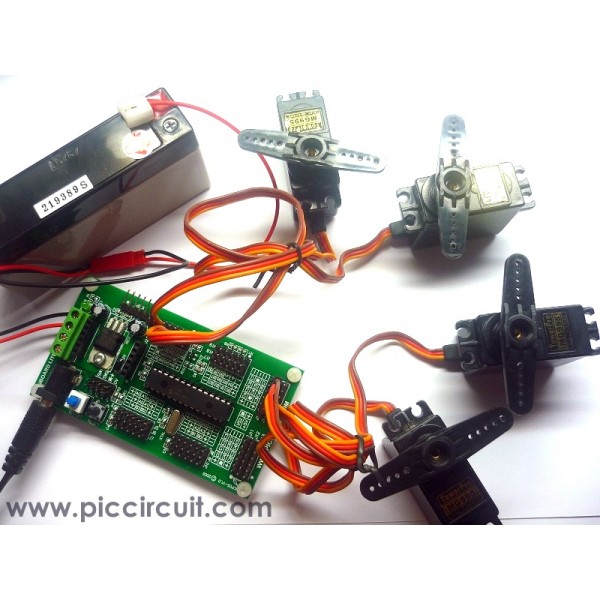

When program run, the servo motors will turn left and right. This tutorial will work with the Hi-Tech C compilers.
Servo Motor Operations:
- The servo motor signal consists of pulses width from 1 to 2 milliseconds long and repeated 60 times a second (16.67ms per period)
- Pulse width is vary for different servo motor

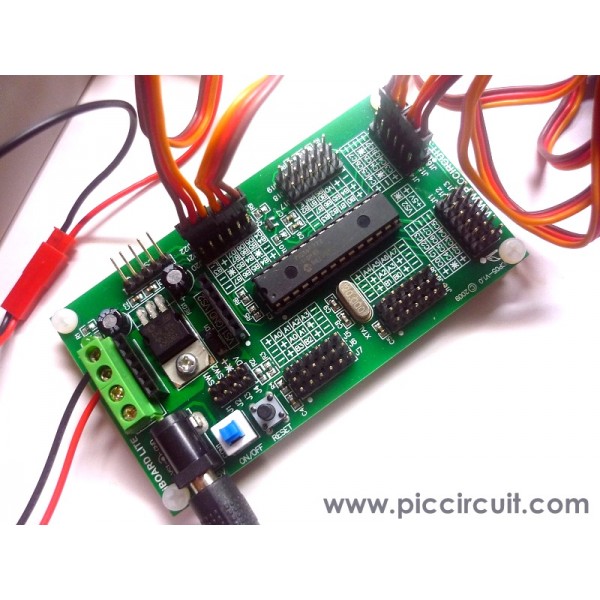

iBoard connection:
- RB4: Servo motor 1
- RB5: Servo motor 2
- RC4: Servo motor 3
- RC5: Servo motor 4
Video:
- Tutorial 6 - Servo Motor Demo: Video
Download:
- Tutorial 6 - Servo Motor Demo: Source Code; Schematic
- PIC16F722 DataSheet
- MPLAB IDE 8.40 (93.7MB)
- Hi-Tech C Setup Guide
- Hi-Tech C User Guide
