PIC18F4520-I/P (PDIP)
$8.40
Tax excluded
PIC18F4520-I/P (PDIP)

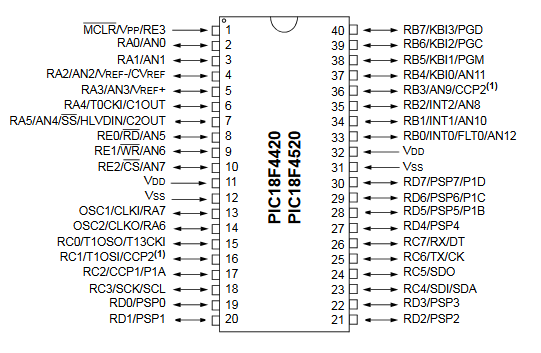

Pin Diagram:
Features & Specification:
CPU
- Up to 10 MIPS Performance at 3V
- C compiler optimized RISC architecture
- 8x8 Single Cycle Hardware Multiply
System
- Internal oscillator support-31 kHz to 8MHz with 4xPLL
- Fail-Safe Clock Monitor- allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- Wide operating Voltage range; 2.0V to 5.5V
nanoWatt Power Managed Modes
- Run, Idle and SLEEP modes
- Idle mode currents down to 5.8uA typical
- Sleep mode currents down to 0.1uA typical
Analog Features
- 10-bit ADC, 13 channels, 100K samples per second
- Programmable Low Voltage Detection Module
- Programmable Brown-out-Reset Module
- Two Analog Comparators multiplexing
Peripherals
- Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode
- EUSART module including LIN bus support
- Four Timer modules
- Up to 5 PWM outputs
- Up to 2 Capture / Compare
Download:
- PIC18F4520 Data Sheet: Link
